GEHR Acetal Engineering Plastic Cut-to-Size

Cut-to-Size Calculator

Enter Specifications
Color
Unit
Thickness
inches

Width
Whole-number
Fraction
inches

Length
Whole-number
Fraction
inches
Quantity
sheets
From $15.00
Edge Finish

Machined and rounded edges available starting at sizes 6"x6" (152x154mm) or greater.

For gluing
Photo of routed edges
Edge Shape
Minimum length 6" Minimum length 155 mm
$1.55 per lineal
$5.09 per lineal
NOT AVAILABLE FOR THIS ITEM
Corner Shape
$6.50 / pc | 1-4 corners
inches
Illustration of measuring radius corners
$7.25 / pc | 1-4 corners
inches
Illustration of measuring chamfered corners
Holes
hole
diameter
holes
per sheet

After placing your order you will receive an email with instructions for sending us hole sizes and their locations.

Please note any special instructions in the comments during checkout.


Most Cut-to-Size orders received before noon are shipped the same day Monday-Saturday.

Cut to size orders are cut with table and CNC panel saws and have a cut tolerance of +/- 1/32". Plastic sheets have a thickness tolerance of +/- 10% and can have thickness variations throughout the sheet. Cut to size items cannot be returned for a refund or exchange.

Sheet sizes, colors, thicknesses and products available on our website are available at TAP Plastics stores.

Visit or contact your local TAP Plastics store where cut-to-size orders often take less than five minutes, start to finish.

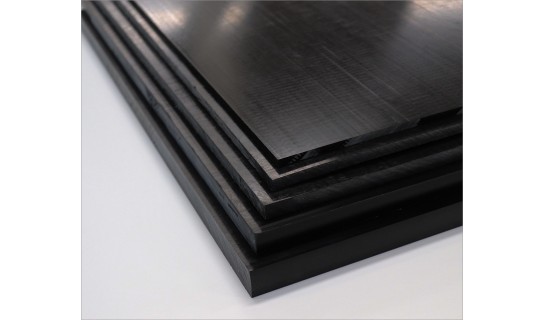

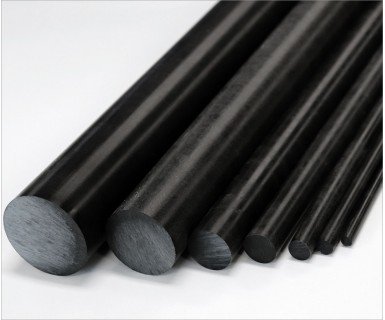

Custom Acetal Copolymer (POM-C) Engineering Plastic

Our Acetal (polyoxymethylene) is perfect for components in machinery engineering. The continuous operating temperature of polyoxymethylene ranges between -40 °F and +212 °F. The high surface strength is only surpassed by a few materials. Acetal exhibits good sliding properties and high resistance to wear and tear because of its high strength and smooth surface. There is a very low risk of stress cracks. Acetal (Copolymer) exhibits a high thermal stability and a high resistance to chemicals and is Comparable to Delrin.

Full-size sheets are also available

Properties GEHR ACETAL™

  • Pressure tested quality
  • High strength and stiffness
  • High rigidity (to -40 °F)
  • High thermal stability
  • Low water absorption
  • High dimension stability
  • Good electrical insulating properties
  • Very good sliding properties
  • High resistance to solvents
  • Very high resistance to stress cracks
Applications GEHR POM-C™
  • Bearings
  • Fittings
  • Gear wheels
  • Parts for pumps
  • Screws
  • Bobbins
  • Parts for the textile industry
  • Carrier for coating lines
  • Food industry

Acetal is a mechanical plastic machined to size and shape and has a thickness tolerance of +/- .0250”/0 (never undersized). Acetal is industrial grade and may come with slight imperfections. They do not contain a paper or film masking.

Click here for Acetal Sheet datasheet.

TAP Video: How to cut plastic sheet


For fractions, decimals and millimeters conversion chart, click here.
