$16.25
Automotive Repair Tape, Boat Wrap, Corrosion Protection, Emergency Seal Tape, Extension Cord Wrap, Fishing Rod Grip, Golf Club Grip Wrapping, Jumper Cable Grip, Plumbing Repair, Weather Proofing, Water Hose and Pipe Repair.

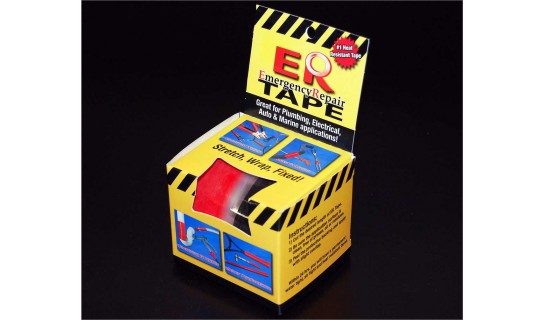

ER Tape is a unique self bonding silicone rubber tape suitable wherever a tough, permanently resilient, void-free insulation is required. ER Tape is self-adhering and self-fusing, curing in 24 hours at room temperature. Faster curing and a harder finish can be accomplished through the application of heat after wrapping.
ER Tape Specifications & Performance Data:
Below you'll find the performance specifications for ER Tape which have been verified using certified and standardized testing methods. The information provided is to ensure that ER Tape is right for your application, be it plumbing, electrical, or pneumatic/hydraulic related.
Contents: 2 rolls, 1" x 12'
Uses for Emergency Repair Tape: Click here
ER Tape is a unique self bonding silicone rubber tape suitable wherever a tough, permanently resilient, void-free insulation is required. ER Tape is self-adhering and self-fusing, curing in 24 hours at room temperature. Faster curing and a harder finish can be accomplished through the application of heat after wrapping.
ER Tape Specifications & Performance Data:
Below you'll find the performance specifications for ER Tape which have been verified using certified and standardized testing methods. The information provided is to ensure that ER Tape is right for your application, be it plumbing, electrical, or pneumatic/hydraulic related.
Property
|
Performance
|
Test Method
|
Operating Temperature Range
|
-60ºC to 200ºC (Continuous)
-65ºC to 260ºC (Intermittent)
|
|
Specific Gravity
|
1.2
|
ASTM D792
|
Hardness/Durometer
|
50 Shore A (Room cured for 24 hours)
70 Shore A (Cured at 300ºF)
75 Shore A (Cured at 480ºF)
|
ASTM D2148
|
Tensile Strength (Min)
|
700psi
|
ASTM D2148
|
Elongation (Min)
|
300%
|
ASTM D119
|
Bond Strength (Min)
|
2 lbs.
|
MIL CID-A-A-59163
|
Adhesion (Max)
|
3 inches Unwind
|
ASTM D746
|
Cold Brittle Point (Max)
|
-65ºC
|
ASTM D2148
|
Water Absorption (Max)
|
3% (By weight)
|
MIL CID-A-A-59163
|
Dielectric Strength (Min on 0.02"in. Thickness)
|
No
|
MIL CID-A-A-59163
|
Dielectric Constant (1KHz)
|
2.95
|
ASTM D150
|
Dissipation Factor (1KHz)
|
<0.0004
|
ASTM D150
|
Volume Resistivity
|
3^10
|
MIL CID-A-A-59163
|
Contents: 2 rolls, 1" x 12'
Uses for Emergency Repair Tape: Click here
